Tauride Palace - Rooms 537–541
2023Saint Petersburg
Historic Fireplace Surveys
Year:2014Location:Saint Petersburg, RussiaRole:AuthorCategory:Scan-to-BIM, Small Architectural Forms, Cultural Heritage, Revit
About the Project
Measured surveys of two historic fireplaces in Saint Petersburg using photogrammetry. A series of photographs was processed into point clouds, which were then used to create accurate Revit 3D models and measured drawings.
I carried out the full workflow, from photography and point-cloud generation to BIM modeling and drawing production.
Gallery

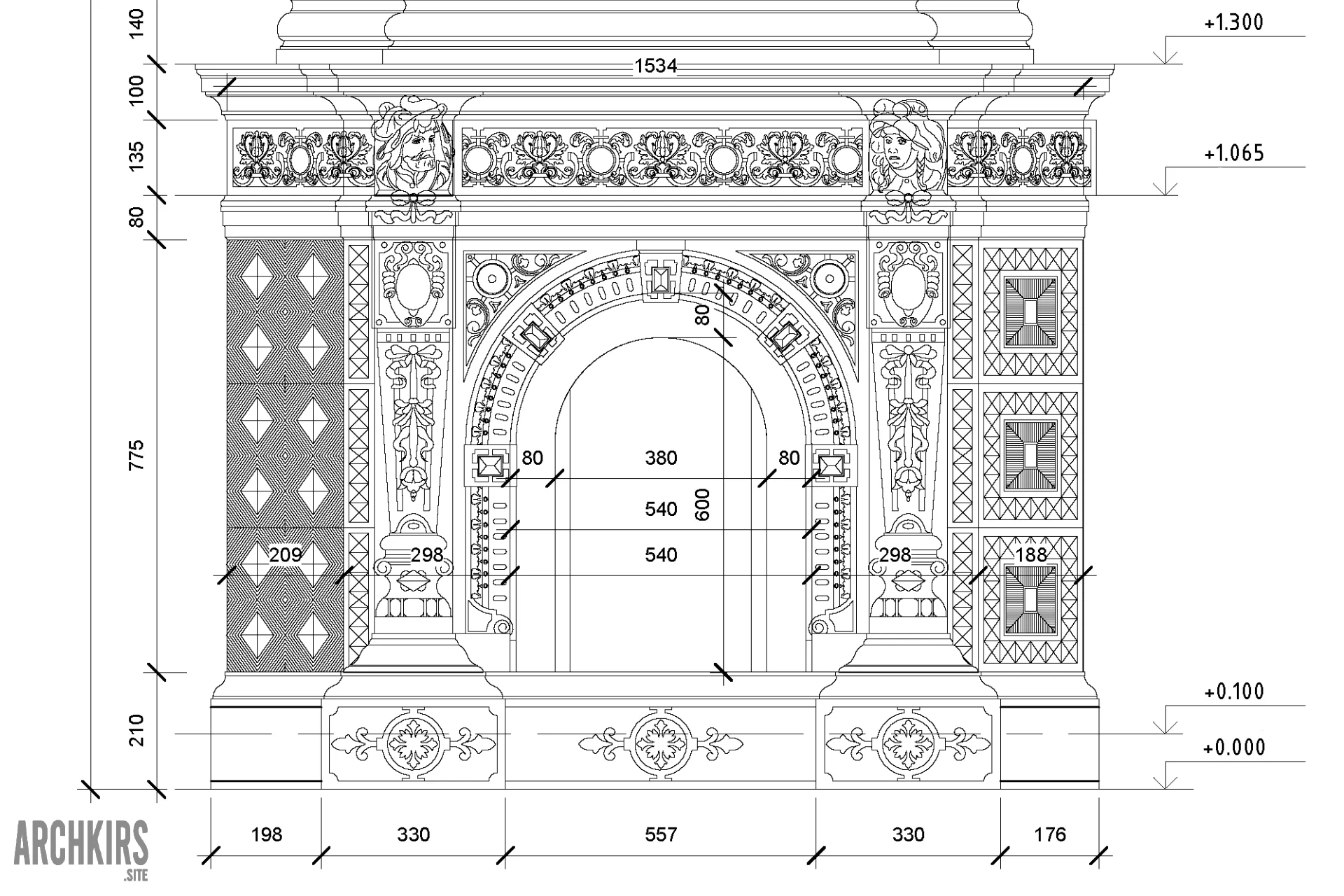

Fireplace 1, measured drawing, portal
Fireplace 1, point cloud, front view
Fireplace 1, point cloud, angled view
Fireplace 1, measured drawing, elevation
Fireplace 2, Revit 3D model, elevation
Fireplace 2, point cloud, front view
Fireplace 2, point cloud, angled view
Fireplace 2, measured drawing, elevation
